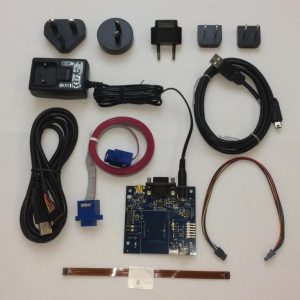

NDS-1E Navigation Development System Kit

This board conveniently connects DC-4E (EP),  AHRS-8 (8P), and AHRS-M2 sensors to a personal computer or a target system. With a choice of RS232 or USB interface, it supports connection to the debug port, test pin and GPIO pin, and powers the inertial system from either an AC adapter or the USB host port.

___

• Low insertion force sensor mating connectors for easy plug-in installation

• Includes Spartacus software

• RS232 interface with DB9 connector

• USB interface with Mini-B connector (COM port emulation)

• Universal AC power adapter designed to support most international voltages and outlets

• Can also be powered from USB host port through USB cable

• Support for programming through either RS232 or USB port

• Provides access to debug port, test pin, and GPIO pin

• Employs non-magnetic connectors and other components to minimize magnetic interference with the sensor

• Mounting holes for optional alignment blocks (to assure repeatable alignment of the sensor in testing applications)

• Compact size

• RoHS compliant product
